AI Engine Development

See Vitis™ Development Environment on xilinx.com
See Vitis™ AI Development Environment on xilinx.com

Designing with the AI Engine DSPLib and Vitis Model Composer

Version: Vitis 2022.1

Introduction

The purpose of this tutorial is to provide hands-on experience for designing AI Engine applications using Model Composer. This tool is a set of blocksets for Simulink that makes it easy to develop applications for Xilinx devices, integrating RTL/HLS blocks for the Programmable Logic, as well as AI Engine blocks for the AI Engine array. Vitis Model Composer can be used to create complex systems targeting the PL (RTL and HLS blocksets) and the AI Engine array (AIE blockset) at the same time. The complete system can be simulated in Simulink, and the code generated (RTL for the PL and C++ graph for the AI Engine array).

Before You Begin

Install the tools:

Overview

The goal of this tutorial is to implement the Decimation Filter Chain depicted below:

Decimation Filter Chain

  1. Open MATLAB by typing model_composer. The path to the various blocksets of Model Composer are automatically added.
  2. In order to initialize the tutorial environment type setupLab in the MATLAB command window.

This function includes the directory LabUtils in the search path and runs the filter coefficients initialization. The output in the MATLAB command window is:

>> setupLab
HB1
  Center Tap: 16384
Phase 1 Norm: 16384
 Max Phase 1: 9647

HB2
  Center Tap: 16384
Phase 1 Norm: 16384
 Max Phase 1: 9935

HB3
  Center Tap: 16384
Phase 1 Norm: 16384
 Max Phase 1: 10373

CF
Channel Filter Norm: 32768
           Max Coef: 28004

>>

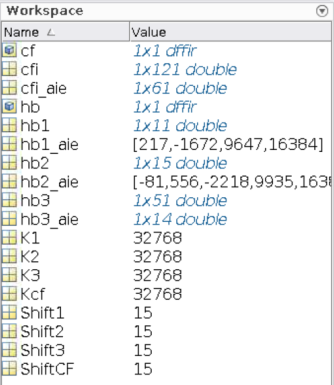

In the workspace sub-window you can see that a number of variables that are defined:

  • hb1, hb2, hb3, cfi: Coefficients of the filters which are used in the Simulink model.
  • hb1_aie, hb2_aie, hb3_aie, cfi_aie: Coefficients vectors which are used in the AI Engine design:
    • For half-band filters this vector contains only the left-hand side non-null taps including the centre tap.
    • For symmetric filters this vector contains only the left-hand side taps, including the center tap if the filter length is odd.
  • Shift1, Shift2, Shift3, ShiftCF: The number of bits bits by which the result has to be shifted before the result is sent to the ouput port.

Workspace

There are 4 additional files:

  • VMC_DSPLib_Solution_Stage1.slx
  • VMC_DSPLib_Solution_Stage2.slx
  • VMC_DSPLib_Solution_Stage3.slx
  • VMC_DSPLib_Solution_Stage4.slx

These are there to help you if you cannot complete any of the 4 stages.

Stage 1: Create and Simulate the Design

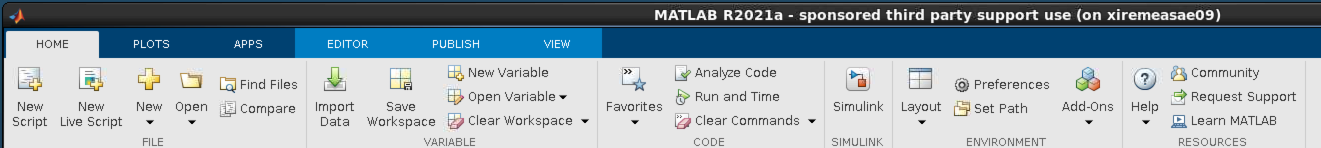

  1. On the MATLAB GUI, select the Home Tab and click Simulink.

missing image

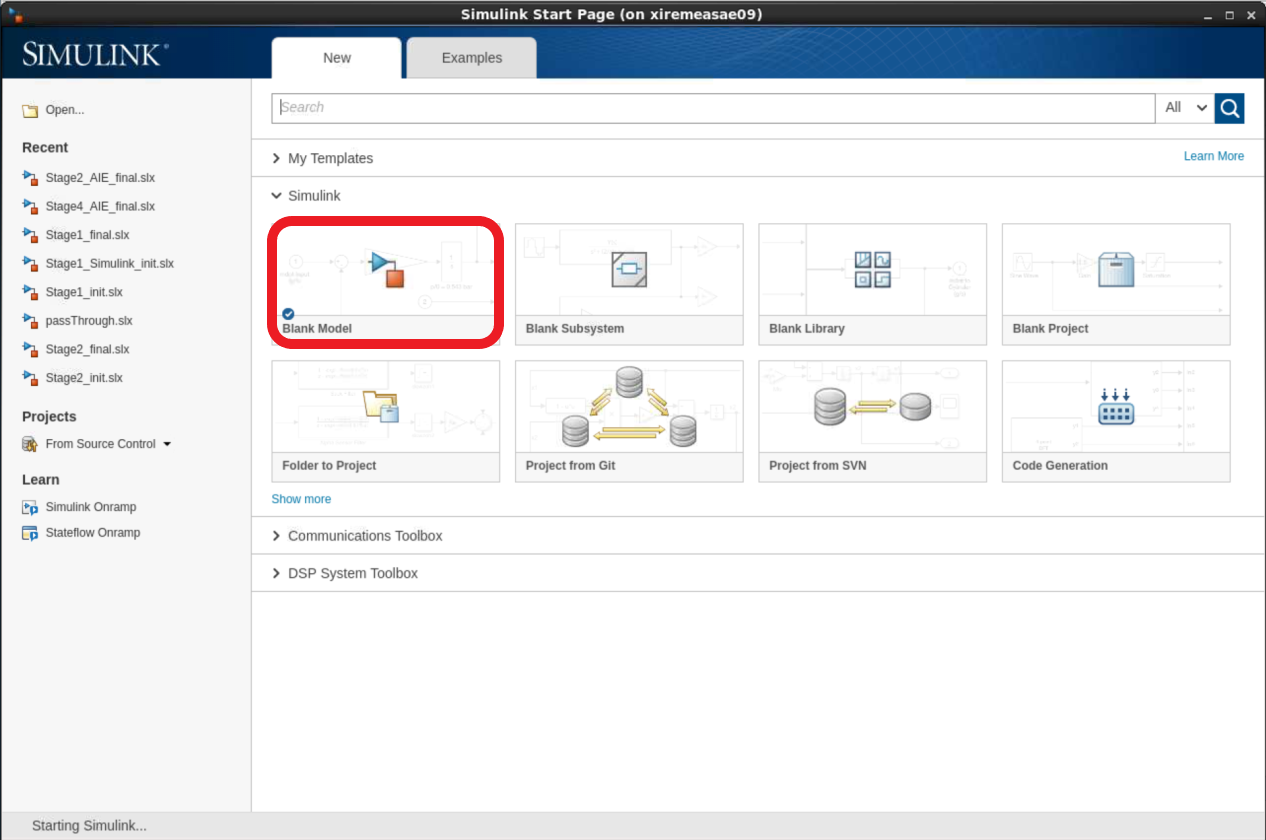

  1. Select Blank Model to create a new canvas on which to design the Decimation Chain.

missing image

Perform the next two steps to enhance the User Experience. This allows you to have an instant access to the initialization file and to automatically call it when opening the design or when you update it.

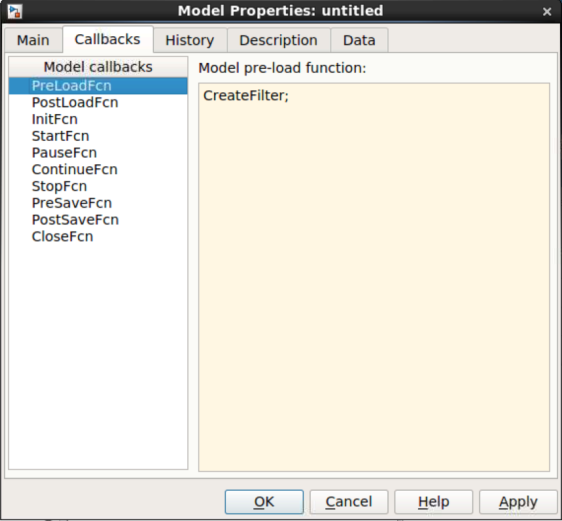

  1. Right-click in the canvas and select Model Properties:
    • Click the Callbacks tab.
    • Click PreLoadFcn and type CreateFilter; in the edit window on the right.
    • Click InitFcn and type CreateFilter; in the edit window on the right.
    • Click Apply.

missing image

  1. Click on the canvas and type subsys. Select the first Subsystem displayed in the list (Subsystem, Simulink/Ports & Subsystem).

missing image

  • Double-click the new block and remove all blocks inside (CTRL-A and Del).
  • Go back to the top level by clicking on the Up-arrow.

missing image

  • Right-click the Subsystem and select Properties.
  • Click the Callbacks tab.
  • Select OpenFcn in the Callback function list.
  • Type open('CreateFilter.m'); in the edit window on the right.
  • Click Apply and OK.

Now when you double-lick this bock you will open the initialization matlab function (CreateFilter.m) in the MATLAB editor. Save the model CTRL+S and assign the name VMC_DSPLib.

  1. Click the Library Browser icon.

missing image

Near the end of the list of the Library Browser, you will find the Xilinx Toolbox. This contains three sub-libraries:

  • AI Engine
  • HDL
  • HLS

Click the AI Engine section. This reveals see four subsections:

  • DSP
  • Interfaces
  • Signal Routing
  • Sinks
  • Sources
  • Tools
  • User-Defined functions
  1. Click the DSP sub-section. There are 2 sub-menu entries:
  • Stream IO : which contains filter implementations using streaming input and output:
  • Window IO: which contains filter implementations using frame-based input and output.

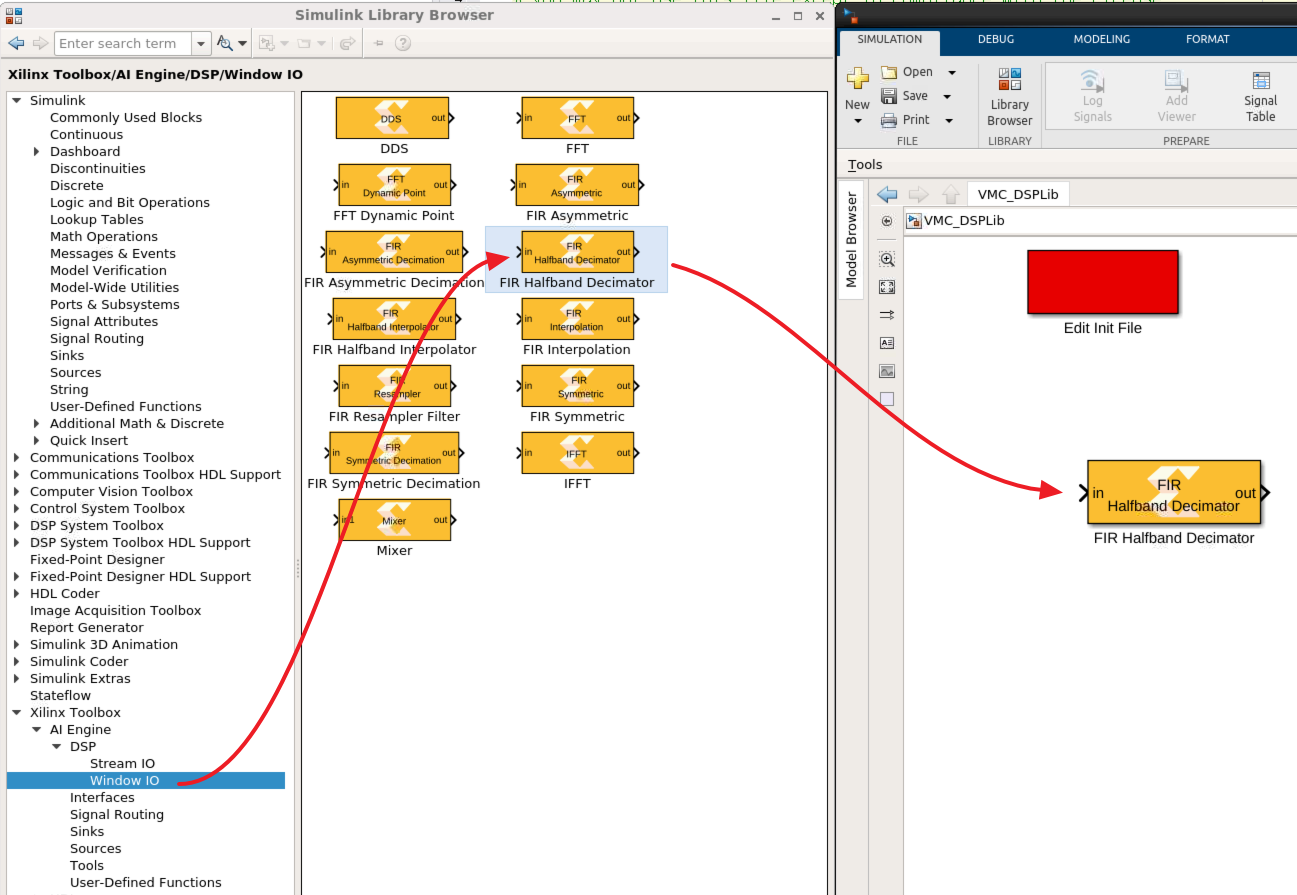

  1. Click the Window IO sub-section and place the FIR Halfband Decimator block in the canvas as shown in the following figure.

missing image

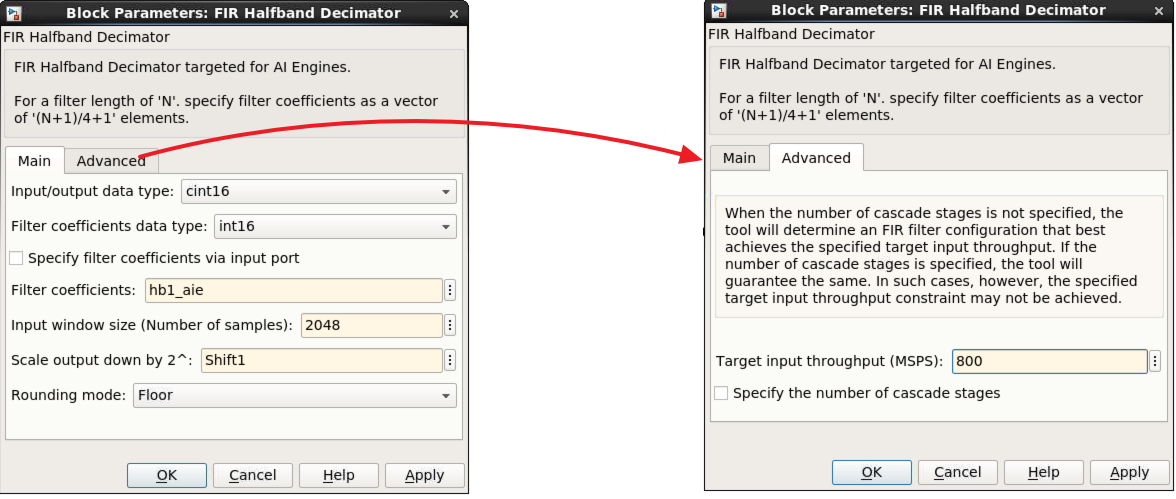

  1. Double-click the AIE FIR HalfBand Decimator block to open the GUI. Populate the GUI with the following parameters :

    • Input/output data type: cint16
    • Filter coefficients data type: int16
    • Filter coefficients: hb1_aie
    • Input Window size (Number of samples): 2048
    • Input sampling rate (MSPS): 800
    • **Scale output down by 2^: Shift1
    • Rounding mode: Floor

    Click on the Advanced tab and populate the Input Sampling rate with:

    • Input sampling rate (MSPS): 800

    Click Apply and OK.

missing image

Now create a data source to feed this filter.

  1. Create the following two blocks by clicking the canvas and typing the beginning of the name of the block. Then enter the given parameters:
Name to Type Block Name to Select Parameters
random Random Source Source Type: Uniform
Minimum: -30000
Maximum: 30000
Sample time: 1
Samples per frame: 2048
Complexity: complex
cast Cast Output data type: int16
  1. Cascade the three blocks: Random Source, Cast, AIE FIR Filter.

  2. The file ReferenceChain.slx contains the decimation chain using Simulink blocks. Open the file ReferenceChain.slx. Copy the block HB1 over to your design.

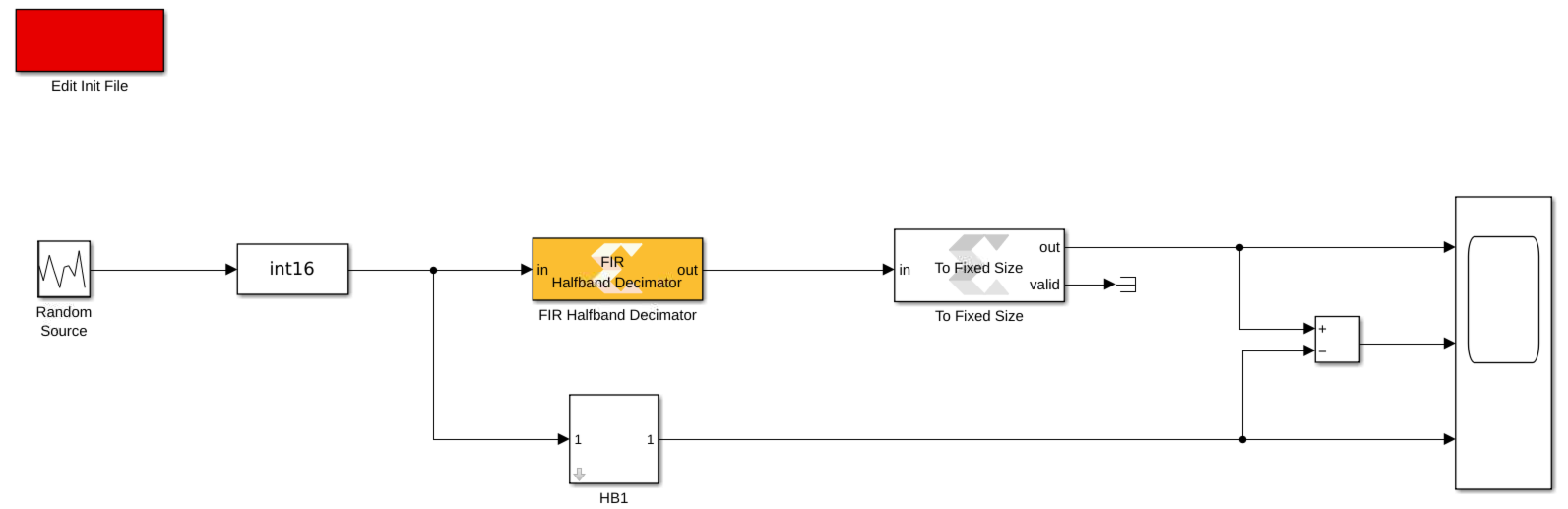

  3. Copy the small set of blocks (To Fixed Size, Subtract, Scope) to create the following design:

missing image

  1. Ensure that the parameter Output Size of the block To Fixed Size is set to 1024.

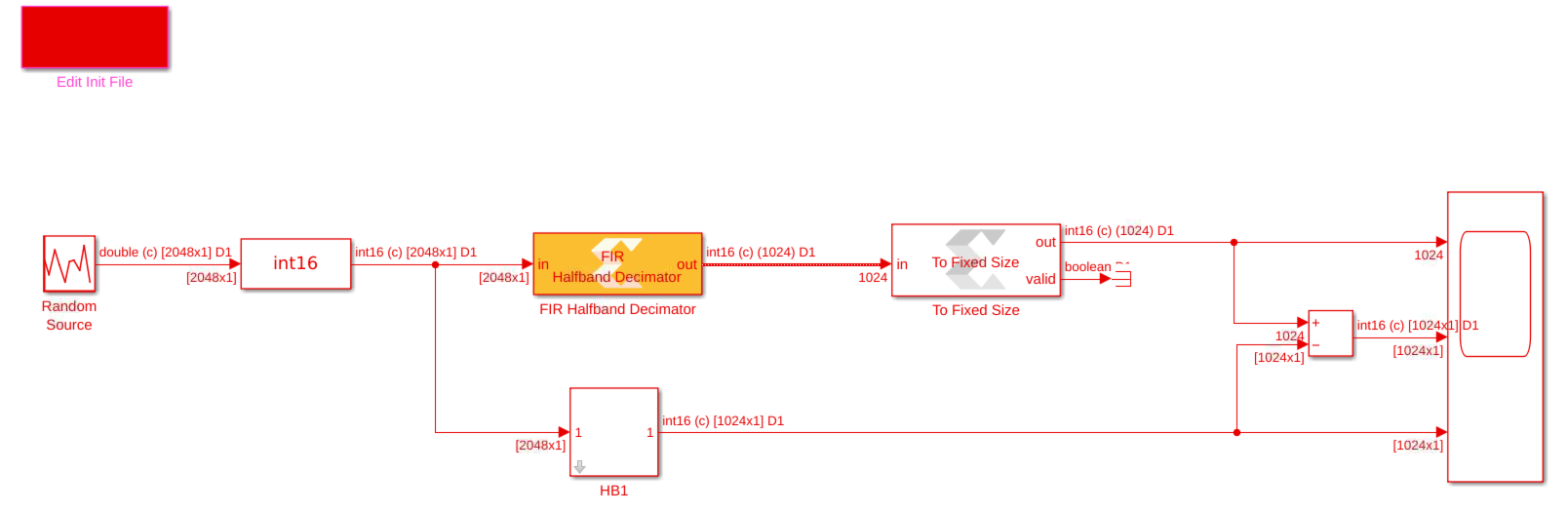

  2. Set the Stop Time to 5000 and run the design. The FIR filter is compiled and the design is run. The scope should show a completely null difference.

  3. To gain more information about the signals traveling through the wires, update the following display parameters:

    • Right-click the canvas and select Other Displays --> Signals and Ports --> Signal Dimensions.
    • Right-click the canvas and select Other Displays --> Signals and Ports --> Port Data Types.
    • Right-click the canvas and select Sample Time Display --> all.

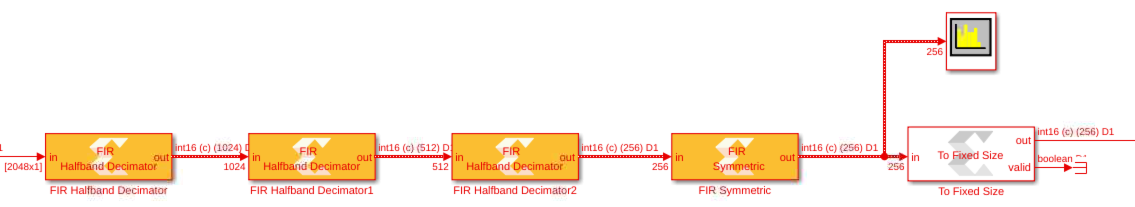

After updating the design with CTRL-D, the display should look as follows:

missing image

Notice that before the implementing the Decimation Filter the vector length was 2048, but after implementation this was reduced to 1024.

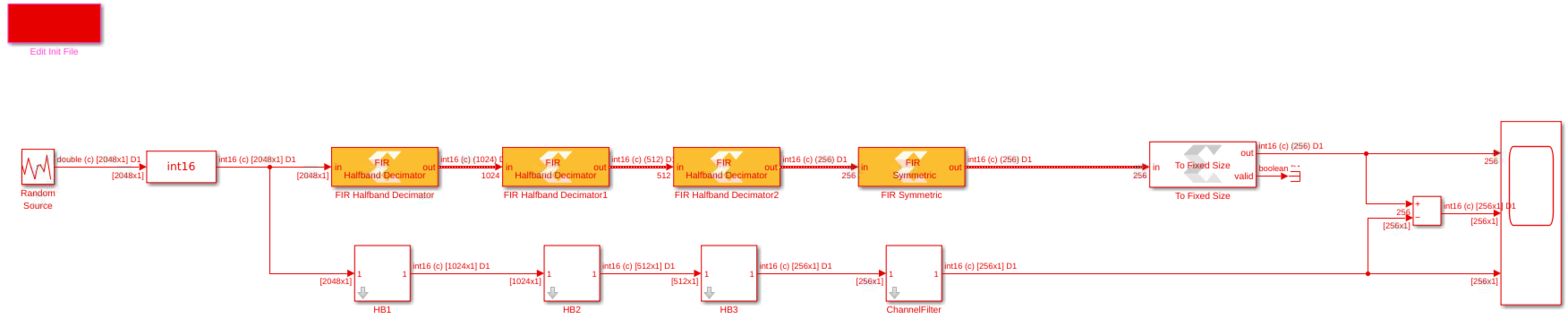

  1. Update the design with the other three filters using the following parameters:
Parameter HB1 HB2 HB3 Channel Filter
Filter Block FIR HalfBand Decimator FIR HalfBand Decimator FIR HalfBand Decimator FIR Symmetric Filter
Input Output data type cint16 cint16 cint16 cint16
Filter Coefficients Data Type int16 int16 int16 int16
Filter Coefficients hb1_aie hb2_aie hb3_aie cfi_aie
Filter Length N/A N/A N/A length(cfi)
Input window size (Number of samples) 2048 1024 512 256
Input sampling rate (MSPS) 800 400 200 100
Specify Number of Cascade Stage Uncheck Uncheck Uncheck Uncheck
Scale output down by 2^ Shift1 Shift2 Shift3 ShiftCF
Rounding mode floor floor floor floor floor
  1. Update the Output Size parameter of the To Fixed Size block to 256. The design should look like as follows:

missing image

  1. Run the design. The added filters are compiled and the design is run through the 5000 samples. The difference between the output should still be 0.

Stage 2: Further Analysis of the Design

When creating a DSP design, one of the most important parameters to consider is the spectrum. In Simulink the spectrum can be easily displayed using a spectrum scope.

  1. Right-click the canvas and type spectrum.
  2. Connect the spectrum scope at the output of the last filter (the Channel Filter):
  3. Set the Stop Time of the simulation to inf.

missing image

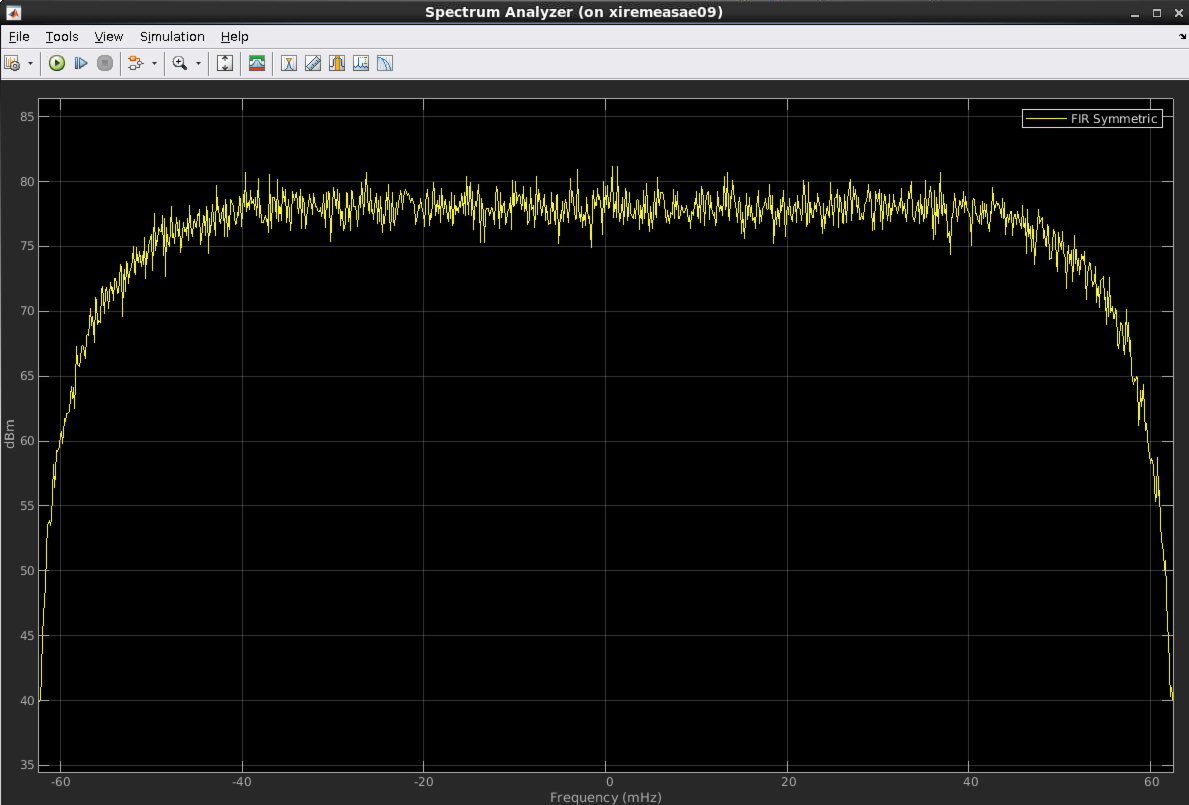

Run the simulation. The spectrum scope should display similar to the following:

missing image

Now add a block coming from a standard templated C++ kernel which source is in the directory aiecode_src. This function will be a frequency shift operation that will be placed after the downsampling chain.

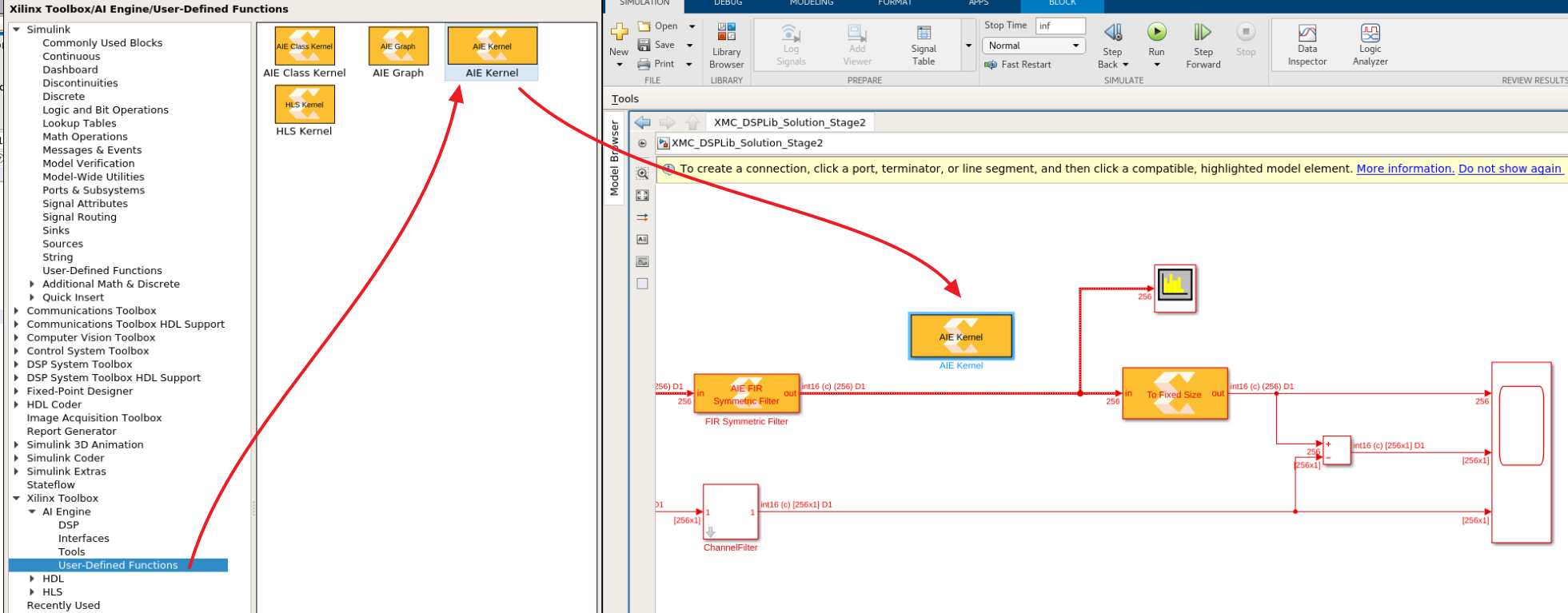

  1. Select the block AIE Kernel from the User-defined Functions section of the AI Engine Library and place it in the canvas:

missing image

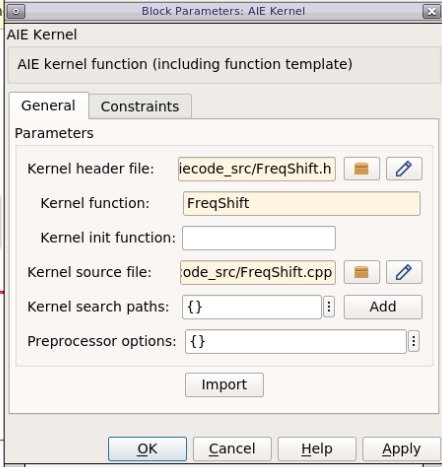

  1. Double-click the block, a GUI will display. Populate it with the following data:
  • Kernel header file: aiecode_src / FreqShift.h
  • Kernel function: FreqShift
  • Kernel source file: aiecode_src / FreqShift.cpp

missing image

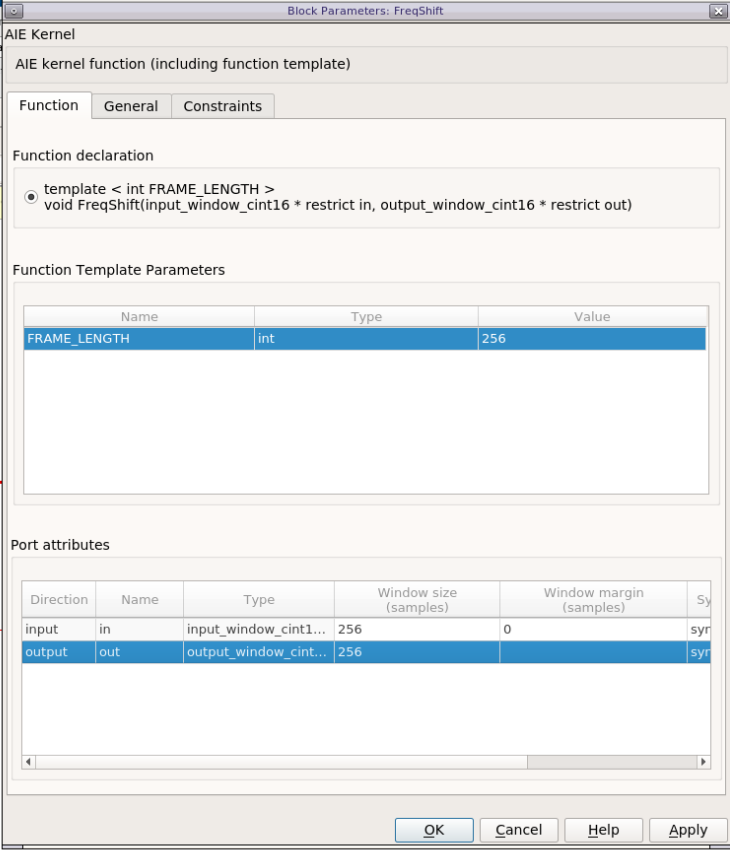

  1. Click Import. A new GUI displays. FRAME_LENGTH is the template parameter. Its value is 256 because at this stage this is the size of the data frames. The input and output ports have also the same size: 256 samples. Click OK.

missing image

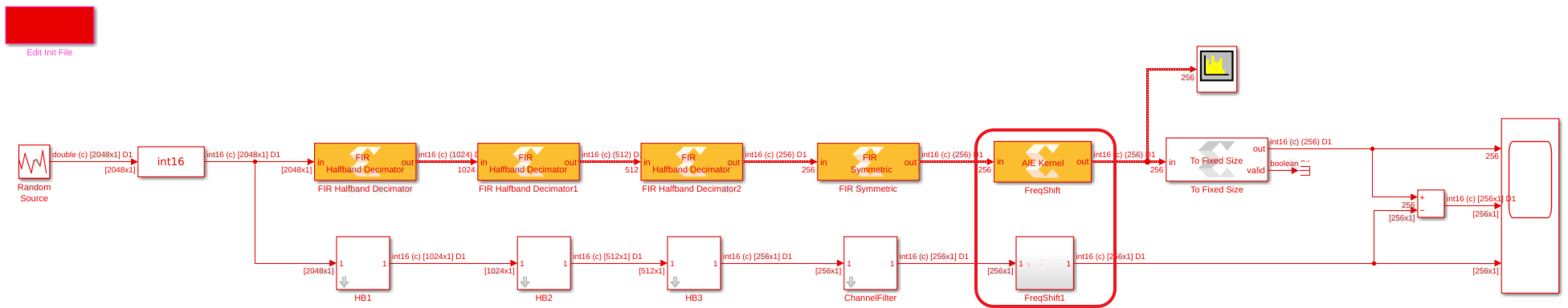

  1. Place this new block between the 'AIE FIR Channel' and 'To Fixed Size' blocks. Grab the 'FreqShift' block from the Reference Chain Simulink design and place it after the ChannelFilter Simulink block. Your design should now look as follows:

missing image

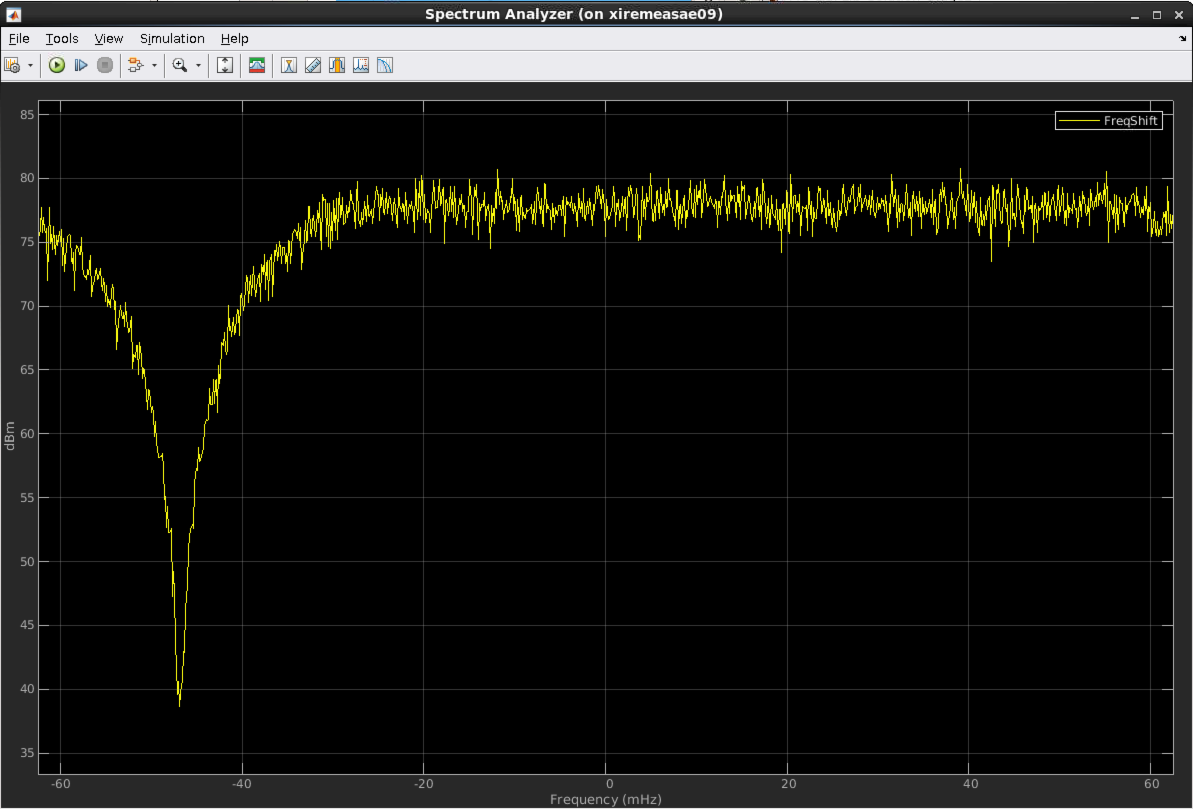

  1. Click Run. The new filter will get compiled and a new spectrum will be displayed:

missing image

  1. Switch the Stop Time back to 5000 and verify that the difference is still 0.

Developing an AI Engine graph in Model Composer is relatively straightforward. What you have learned here is that you can easily place a spectrum scope within the design at the output of a design, but actually it could be placed anywhere in between two blocks without modifying anything in the kernels and the graph. Furthermore, Simulink has a lot of specific blocksets that can be used to generate test vectors, create a reference model, and compare the signals at any point in the design.

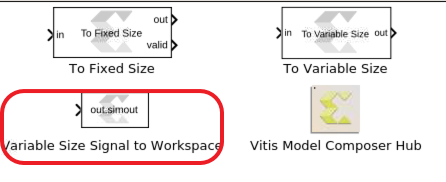

If you want to save some data in a workspace variable for some more complex analysis. This can be done using the Variable Size Signal to Workspace block within the Xilinx Toolbox --> AI Engine --> Tools blockset:

missing image

All the simulations that occur in Simulink are the so-called 'Emulation-SW'. These types of simulation are bit-exact, but they do not provide any information about timing.

Stage 3: Generate the Code and Perform Emulation-AI Engine

In this stage you will generate the graph code of this design and perform bit-true and cycle true simulations with the AI Engine Simulator.

  1. Select the four AIE FIR Filters and the Frequency shifting block and type CTRL+G to group them in a subsystem. Assign a new name: FIRchain.
  2. Click the canvas and type model co. Set the Subsystem name to FIRchain.
  3. Double-click the block Model Composer Hub, select the AI Engine / Settings target and set the following parameters:
    • Check Create testbench
    • Check Run cycle approximate AIE Simulation after code generation
    • Check Plot AIE Simulation Output and Estimate Throughput
    • Check Collect Data for Vitis Analyzer
  4. Click Apply
  5. Select the Generate tab:
    • Click on Generate.

The simulink design is run to generate the testbench, then the graph code is generated and compiled. The source code can be viewed in ./code/src_aie/FIRchain.h:

#ifndef __XMC_FIRCHAIN_H__
#define __XMC_FIRCHAIN_H__

#include <adf.h>
#include "./FIR_Halfband_Decimator_b6bb9f39/FIR_Halfband_Decimator_b6bb9f39.h"
#include "./FIR_Halfband_Decimator_c797d059/FIR_Halfband_Decimator_c797d059.h"
#include "./FIR_Halfband_Decimator_714ce49a/FIR_Halfband_Decimator_714ce49a.h"
#include "./FIR_Symmetric_00c44acd/FIR_Symmetric_00c44acd.h"
#include "aiecode_src/FreqShift.h"

class FIRchain_base : public adf::graph {
public:
   FIR_Halfband_Decimator_b6bb9f39 FIR_Halfband_Decimator;
   FIR_Halfband_Decimator_c797d059 FIR_Halfband_Decimator1;
   FIR_Halfband_Decimator_714ce49a FIR_Halfband_Decimator2;
   FIR_Symmetric_00c44acd FIR_Symmetric;
   adf::kernel FreqShift_0;

public:
   adf::input_port In1;
   adf::output_port Out1;

   FIRchain_base() {
      // create kernel FreqShift_0
      FreqShift_0 = adf::kernel::create(FreqShift<256>);
      adf::source(FreqShift_0) = "aiecode_src/FreqShift.cpp";

      // create kernel constraints FreqShift_0
      adf::runtime<ratio>( FreqShift_0 ) = 0.9;

      // create nets to specify connections
      adf::connect<  > net0 (In1, FIR_Halfband_Decimator.in);
      adf::connect<  > net1 (FIR_Halfband_Decimator.out, FIR_Halfband_Decimator1.in);
      adf::connect<  > net2 (FIR_Halfband_Decimator1.out, FIR_Halfband_Decimator2.in);
      adf::connect<  > net3 (FIR_Halfband_Decimator2.out, FIR_Symmetric.in);
      adf::connect< adf::window<1024> > net4 (FIR_Symmetric.out, FreqShift_0.in[0]);
      adf::connect< adf::window<1024> > net5 (FreqShift_0.out[0], Out1);
   }
};

class FIRchain : public adf::graph {
public:
   FIRchain_base mygraph;

public:
   adf::input_plio In1;
   adf::output_plio Out1;

   FIRchain() {
      In1 = adf::input_plio::create("In1",
            adf::plio_32_bits,
            "./data/input/In1.txt");

      Out1 = adf::output_plio::create("Out1",
            adf::plio_32_bits,
            "Out1.txt");

      adf::connect< > (In1.out[0], mygraph.In1);
      adf::connect< > (mygraph.Out1, Out1.in[0]);
   }
};

#endif // __XMC_FIRCHAIN_H__

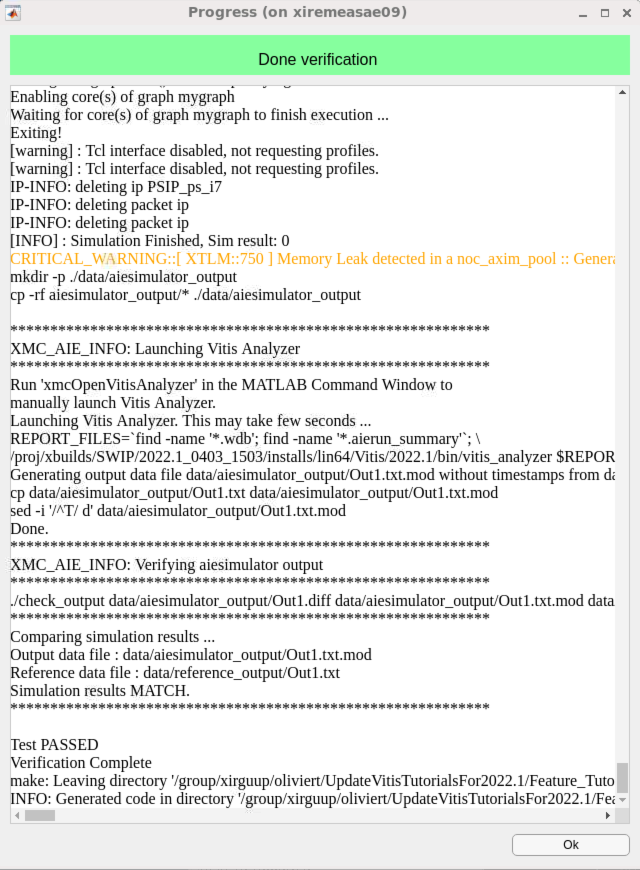

Finally, the bit-exact simulation (Emulation-AIE) is performed and the result compared to the Simulink simulation:

missing image

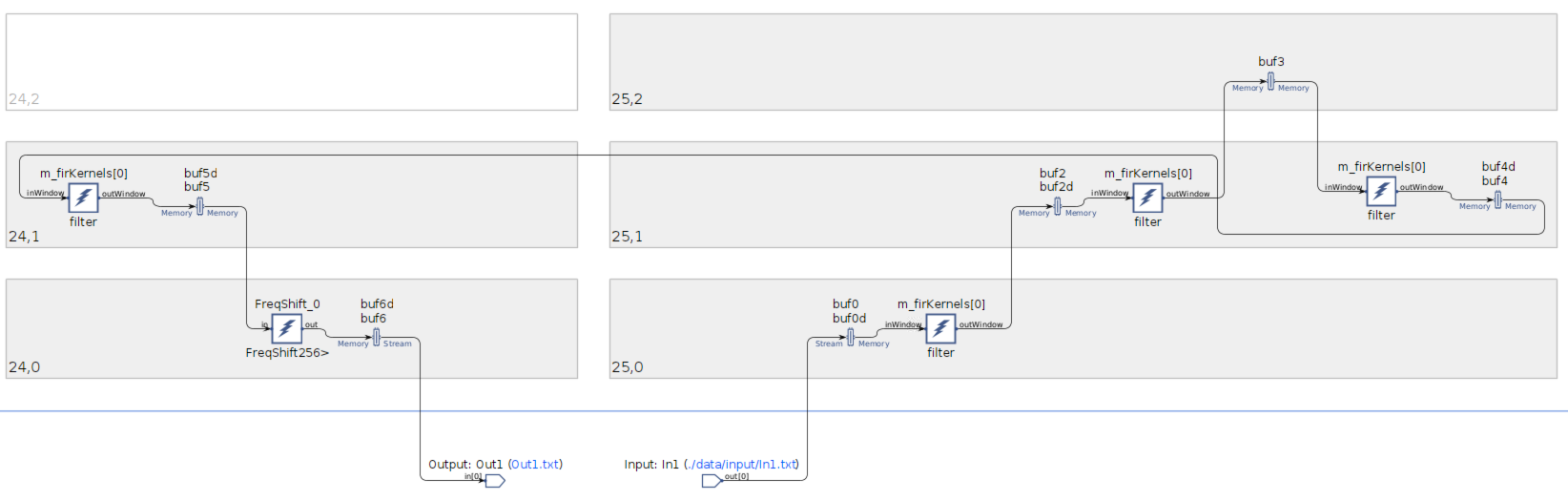

Vitis Analyzer is then launched. From here you can see the Graph View, the Array View, the Timeline, and the Profile information.

missing image

missing image

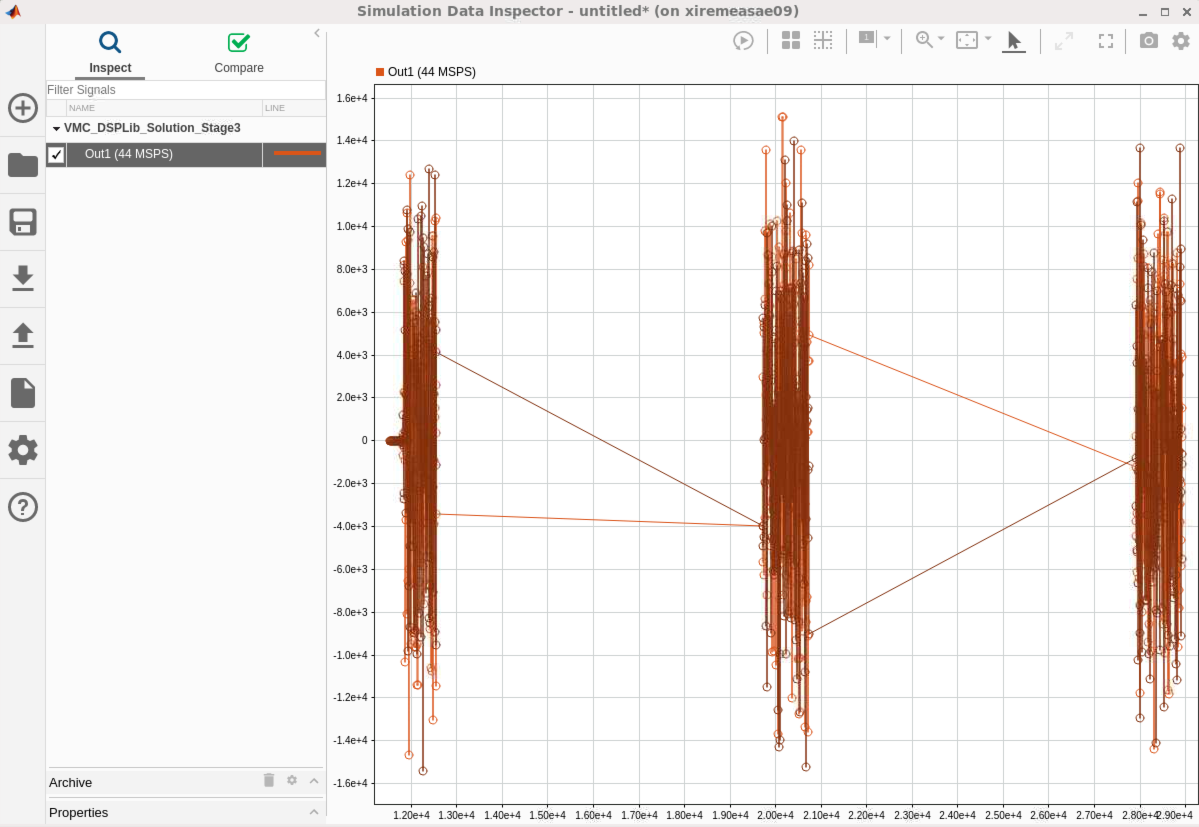

The Simulation Data Inspector opens-up and we can see the output frames and the estimate of the output throughput as shown below:

missing image

Here the estimated throughput is 44 MSPS instead of the expected 100 MSPS. You can use Vitis Analyzer to track the reason of this throughput reduction. Here it is very easy to see that the input stream feeds the data @250 MSPS instead of the 800 MSPS that were expected in the graph. The reason is that the input bitwidth is 32 bits at a rate of 250MHz (default value) as can be seen at the end of the FIRchain.h file.

Stage 4: Increasing PLIO bitwidth and re-generate

Solving this problem is fairly easy. Navigate inside the FIRchain sub-system. Get the PLIO block from Xilinx Toolbox / AI Engine / Interface or just type plio in the canvas. Double-click on the new block and specify:

  • PLIO width (bits): 128
  • Check Specify PLIO frequency
  • PLIO frequency (MHz) : 250

Click OK. Place the block just after the input port, and a copy of this block just before the output port:

missing image

Re-open the Vitis Model Composer Hub and click Generate to re-compile and re-simulate the design.

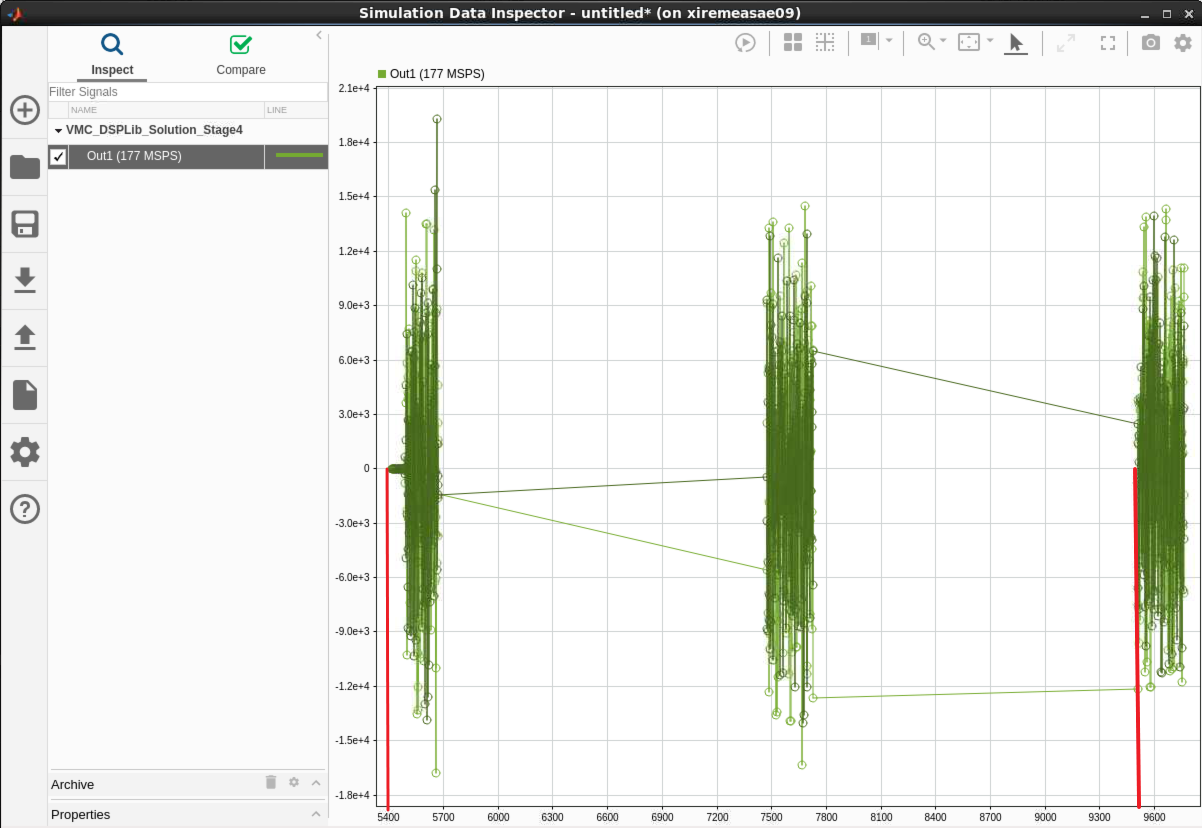

After the AI Engine simulation, the estimated throughput is 177 MSPS. This is computed from the following timestamped (green) output data:

missing image

Three frames are received but only two interframe idle time are taken into account. A more precise estimate woul be to count the 512 output samples in between the 2 red vertical line. This gives almost 125 MSPS which is 1/8th of the input sample rate (1 GSPS). This means that the design can support for sure the 800 MSPS that were specified in the design.

Conclusion

Model Composer is a very efficient way to create graphs either using your own kernels or using the DSPLib FIR Filter (other blocks will be available in subsequent releases).

This tool shows its incredible flexibility when it comes to display spectrum or save data at any stage of the graph. All the source and sink blocks can be used anywhere, allowing you to efficiently debug your design in all corner cases.
