wxc-tab-bar

wxc-tab-bar

Bottom tab bar

Rule

• For the bottom Tab slider page, currently support **icon 、text 、iconFont ** form of the bottom bar.

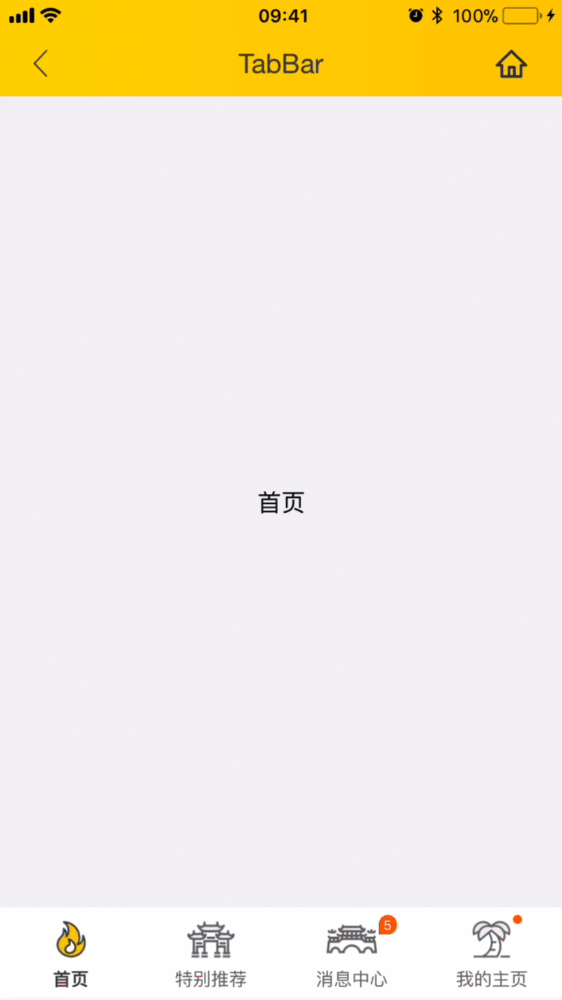

Demo



Code Example

<template>
  <wxc-tab-bar :tab-titles="tabTitles"
               :tab-styles="tabStyles"
               title-type="icon"
               @wxcTabBarCurrentTabSelected="wxcTabBarCurrentTabSelected">
    <!--The first page content-->
    <div class="item-container" :style="contentStyle"><text>Home</text></div>

    <!--The second page content-->
    <div class="item-container" :style="contentStyle"><text>Hot</text></div>

    <!-- The third page content-->
    <div class="item-container" :style="contentStyle"><text>Message</text></div>

    <!-- The fourth page content-->
    <div class="item-container" :style="contentStyle"><text>My</text></div>
  </wxc-tab-bar>
</template>

<style scoped>
  .item-container {
    width: 750px;
    background-color: #f2f3f4;
    align-items: center;
    justify-content: center;
  }
</style>
<script>
  import { WxcTabBar, Utils } from 'weex-ui';

  // https://github.com/alibaba/weex-ui/blob/master/example/tab-bar/config.js
  import Config from './config'

  export default {
    components: { WxcTabBar },
    data: () => ({
      tabTitles: Config.tabTitles,
      tabStyles: Config.tabStyles
    }),
    created () {
      const tabPageHeight = Utils.env.getPageHeight();
      // If the page doesn't have a navigation bar
      // const tabPageHeight = env.deviceHeight / env.deviceWidth * 750;
      const { tabStyles } = this;
      this.contentStyle = { height: (tabPageHeight - tabStyles.height) + 'px' };
    },
    methods: {
      wxcTabBarCurrentTabSelected (e) {
        const index = e.page;
        // console.log(index);
      }
    }
  };
</script>

More details can be found in here

API

Prop	Type	Required	Default	Description
tab-titles	Array	Y	[]	Tab list config
title-type	String	N	icon	type icon/text/iconFont (*1)
tab-styles	Array	N	[]	bottom Tab config
is-tab-view	Boolean	N	true	if set false,add tab-titles config with url can be jumped out
duration	Number	N	300	page slider time of animation
timing-function	String	N	-	page slider function of animation
wrap-bg-color	String	N	#F2F3F4	page background color

*1: Using iconFont

• After Weex Ui version about 0.3.8, we can use iconFont to represent our title image, you can use like this:

 // https://github.com/alibaba/weex-ui/blob/master/example/tab-bar/config.js#L51
  tabIconFontTitles: [
    {
      title: 'Home',
      codePoint: ''
    },
    {
      title: 'Message',
      codePoint: '',
      badge: 5
    },
   // .... more
  ],
  // https://github.com/alibaba/weex-ui/blob/master/example/tab-page/config.js#L72
  tabIconFontStyles: {
      bgColor: '#FFFFFF',
      titleColor: '#666666',
      activeTitleColor: '#3D3D3D',
      activeBgColor: '#FFFFFF',
      isActiveTitleBold: true,
      width: 160,
      height: 120,
      fontSize: 24,
      textPaddingLeft: 10,
      textPaddingRight: 10,
      iconFontSize: 50,
      iconFontColor: '#333333',
      activeIconFontColor: 'red',
      iconFontUrl: '//at.alicdn.com/t/font_501019_mauqv15evc1pp66r.ttf'
    }

Manually setting the page

// <wxc-tab-bar ref="wxc-tab-bar">
// set the third page
this.$refs['wxc-tab-bar'].setPage(2)

// set the third page with no animation
this.$refs['wxc-tab-bar'].setPage(2,null,false);

Event

// @wxcTabBarCurrentTabSelected="wxcTabBarCurrentTabSelected"
// will return the selected index
